High Speed Heavy Load Servo Electric Cylinder for CNC Machining
SEXGL electric cylinders deliver unparalleled motion control for sustainable industrial operations, trusted by BYD (EV battery assembly) and BOE (cleanroom robotics) across North America, Europe, Southeast Asia, and South America. Engineered to replace hydraulic/pneumatic systems, our electric cylinders combine precision positioning with reduced environmental impact, aligning with global carbon-neutral initiatives.
As a core actuator for CNC machines, servo electric cylinders integrate servo motors with high-precision transmission mechanisms (ball screws/planetary roller screws) to convert rotational motion into high-precision, high-rigidity, and high-response linear motion. Replacing traditional hydraulic/pneumatic systems, they provide full closed-loop precision positioning solutions for CNC machining centers, lathes, grinders, and other equipment. Capable of ±0.005mm positioning accuracy, 50–5,000N dynamic load, and 1–500mm/s speed adjustment, they meet high-precision motion control demands in precision machining, mold manufacturing, aerospace component processing, and other applications.

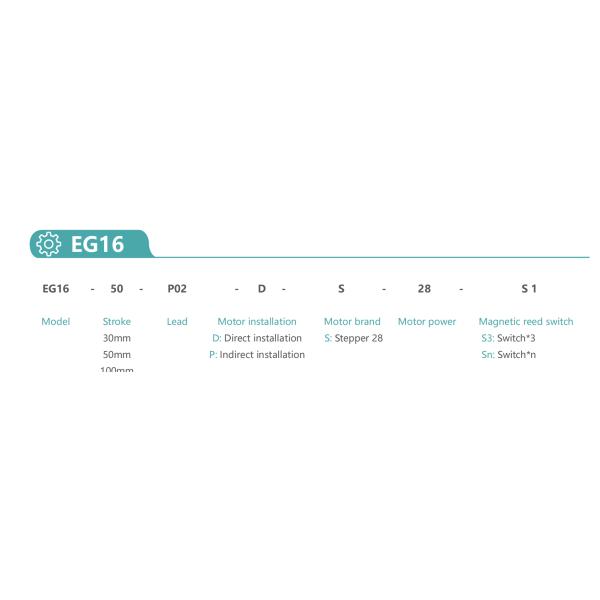

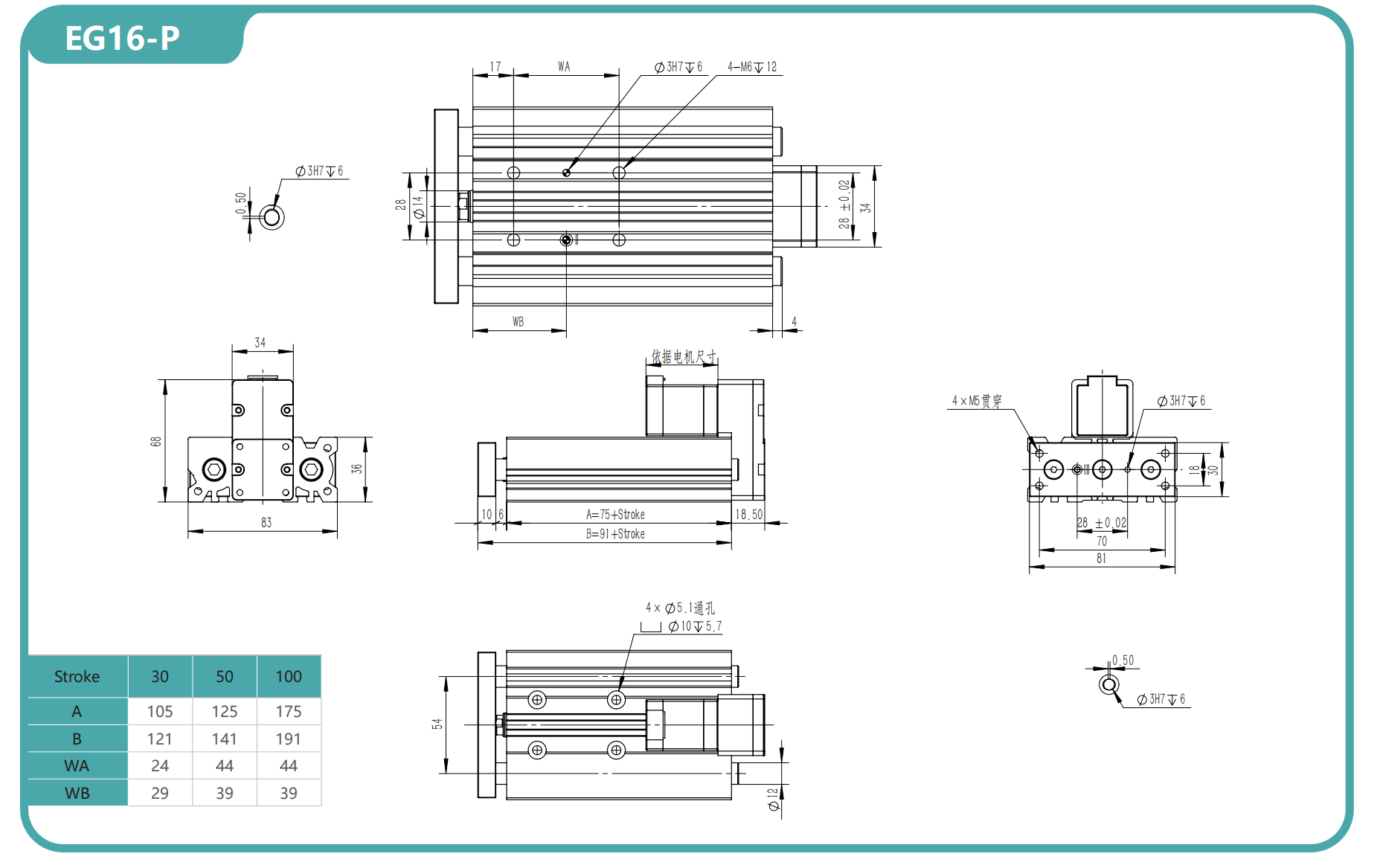

| EG16 |
|
|
|
|
|
| EG16 | — 50 — | P02 - D - | S — | 28 — | S1 |
| Model | Stroke | Lead Motor installation | Motor brand | Motor power | Magnetic reed switch |
| 30mm | D: Direct installation | S: Stepper 28 | S3:Switch*3 |
| 50mm | P:Indirect installation |
| Sn: Switch*n |
| 100mm |
|
|
| Parameters |
|
| Standard motor output (W) | Stepper 28 |
| Rated torque (Nm) | 0.09 |
|
| Screw grade | C7 Rolling 0802 (Slenderness ratio 1:50) |
| Repeatable positioning accuracy (mm) | ±0.02 |
| Screw specification | 802 805 |
|
| Max thrust (N) | 220 88 |
| Max speed (mm/s) | 40 100 |
|
| Stroke (mm) | 30.50.100 |
| Max load (KG) | Horizontal | 5 |
| Vertical | 5 |
|
| Piston rod rotation angle | ±0.7 degree |
| The body weight of Omm stroke (KG) | 1.2 |
|
| Weight added per 10mm (KG) | 0.09 |
| The component weight of direct installation motor(KG) | 0.08 |
| The component weight of indirect installation motor(KG) | 0.15 |
|
| Magnetic switch | CS1-H-1M | Contact type reed switch,wire length 1m |
| CS1-HN-3M | Contactless transistor NPN type,wire length 3m |
|
| CS1-HP-3M | Contactless transistor PNP type,wire length 3m |
